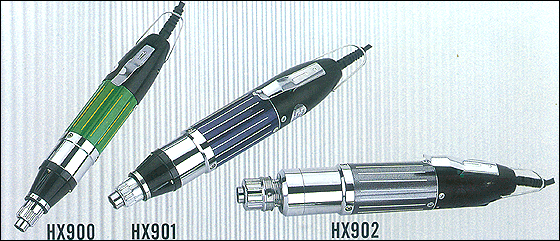

| 技术参数:Technical
Parameters |
| 型号
Model: |
HX900 |
HX901 |
HX902 |
| 调速电压
Voltage(V) |
18,30,36 |
18,30,36 |
18,30,36 |
| 空载转速
Free speed(r/min) |
380/750/1100 |
300/550/800 |
300/600/900 |
| 力矩调节范围
Torque adjustment(N.m) |
0.25-0.95 |
0.45-1.5 |
0.5-2.0 |
| 适用螺钉规格
Applicable screw(mm) |
M1.2-M2.5 |
M2-M4 |
M2.5-M6 |
| 外型尺寸
Dimension (mm) |
ф36x200 |
ф40x210 |
ф41x220 |
| 自重
weight(kg) |
0.4 |
0.58 |
0.72 |
|
|
 |
| |
| 技术参数:Technical
Parameters |

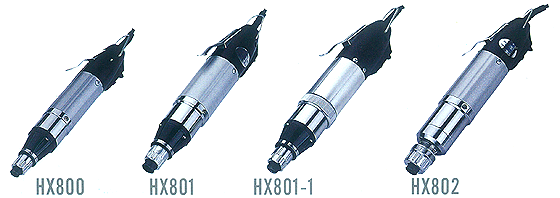

| 型号
Model: |
HX800 |
HX801 |
HX802 |
| 调速电压
Voltage(V) |
18,30,36 |
18,30,36 |
18,30,36 |
| 空载转速
Free speed(r/min) |
400/800/1200 |
300/600/900 |
350/650/950 |
| 力矩调节范围
Torque adjustment(N.m) |
0.2-1.0 |
0.4-1.8 |
0.5-2.5 |
| 适用螺钉规格
Applicable screw(mm) |
M1.2-M2.5 |
M2-M4 |
M2.5-M6 |
| 备用刀头(mm) |
ф4 |
ф5 |
ф6 |
| 外型尺寸
Dimension (mm) |
ф36x200 |
ф40x200 |
ф41x220 |
| 自重
weight(kg) |
0.44 |
0.6 |
0.75 |
|
|
| |
| |
 |
| |
| 技术参数:Technical
Parameters |

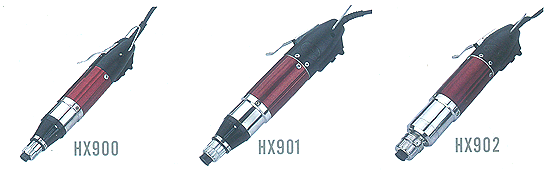

| 型号
Model: |
HX900 |
HX901 |
HX902 |
| 工作电压
Voltage(V) |
18,30,36 |
18,30,36 |
18,30,36 |
| 空载转速
Free speed(r/min) |
380/750/1100 |
300/550/800 |
300/600/900 |
| 力矩调节范围
Torque adjustment(N.m) |
0.25-0.95 |
0.45-1.5 |
0.5-2.0 |
| 适用螺钉规格
Applicable screw(mm) |
M1.2-M2.5 |
M2-M4 |
M2.5-M6 |
| 配用刀头(mm) |
ф4 |
ф5 |
ф6 |
| 外型尺寸
Dimension (mm) |
ф36x200 |
ф40x210 |
ф41x220 |
| 自重
weight(kg) |
0.4 |
0.58 |
0.72 |
|
|
| |
|
| |
|
| |
|
|
|
| 技术参数:Technical
Parameters |
| 型号
Model: |
HX903 |
| 工作电压
Voltage(v) 频率frequency(HZ) |
220/50 |
| 工作电流
Current(A) |
0.8 |
| 空载转速
Free speed(r/min) |
1200 |
| 力矩调节范围
Torque adjustment(N.m) |
0.6-3.8 |
| 适用螺钉规格
Applicable screw(mm) |
M3-M8 |
| 扭力精度
torque accurew(mm) |
5 |
| 外型尺寸
Dimension (mm) |
ф238x175 |
| 自重
weight(kg) |
1.75 |
|
|
|
| |
|
|
|
